🔬 SR Latch with CD4001
CD4001Quad 2-input NOR gate - implements four independent NOR logic gates.
We can use it to build SR Latch circuit, we only need two NOR gates so we'll use the gates connected to pins 1-6:
SR Latch with CD4001B

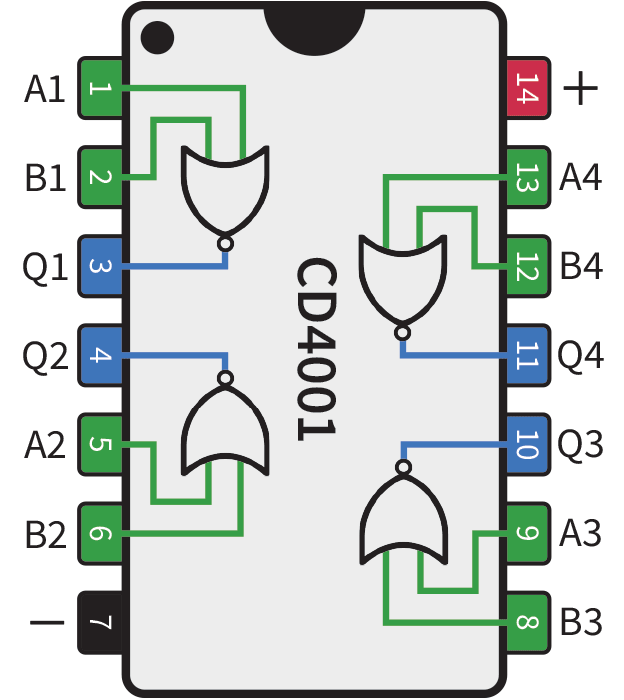

IC Pinout
Clicking the Set button (right) will set state 1 (green LED), clicking the Reset button (left) will clear the state back to 0 (red LED).
